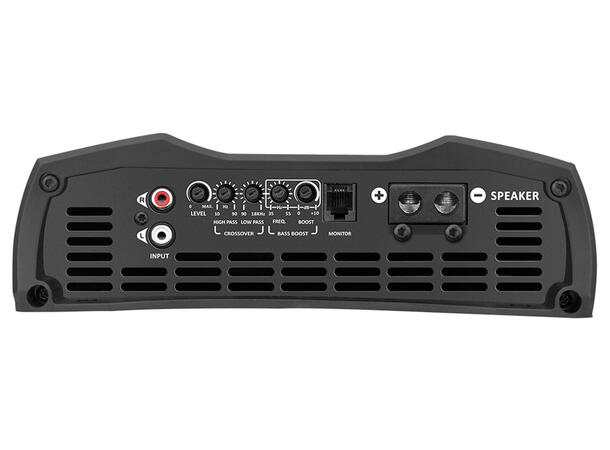

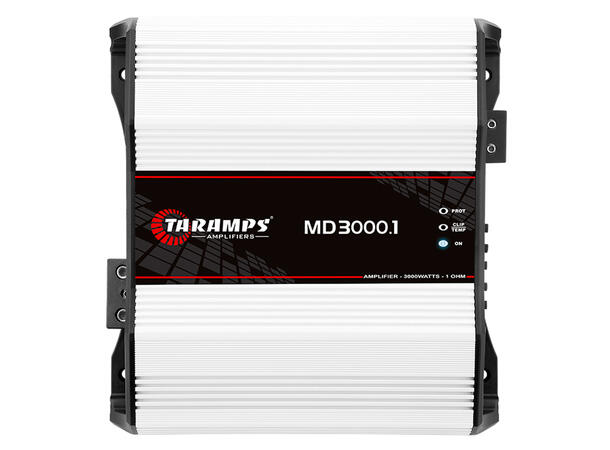

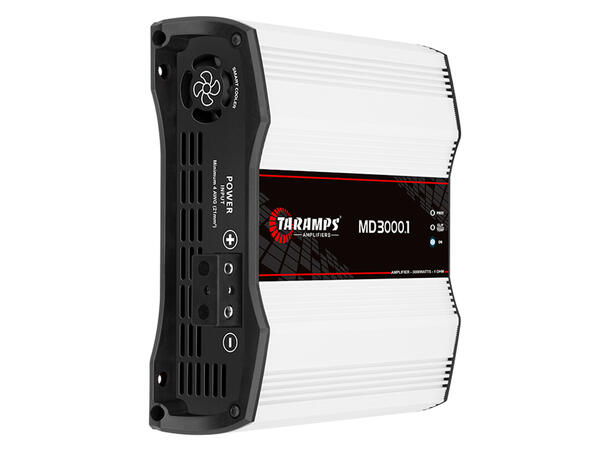

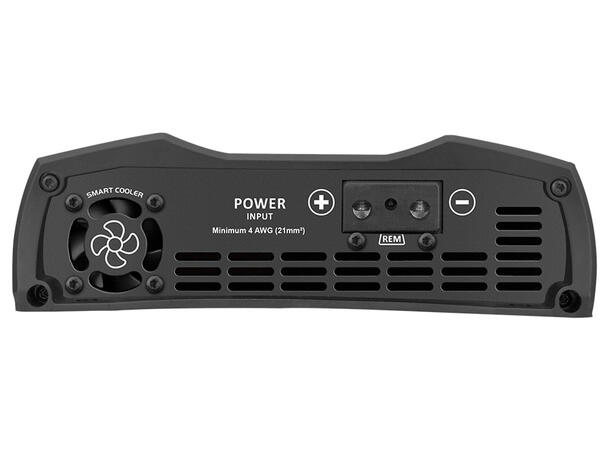

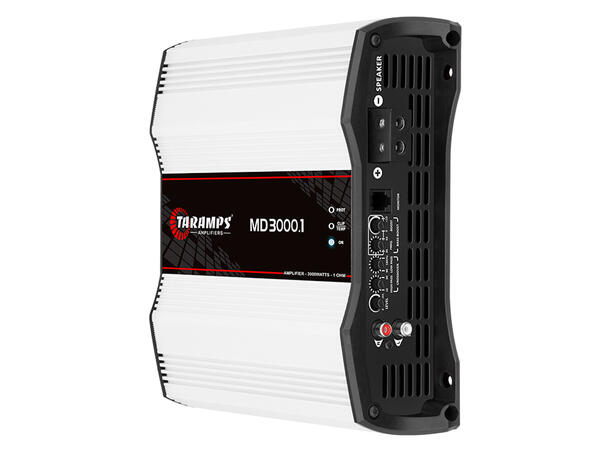

Taramps Bilforsterker 1x3000W 1ohm

Taramps Bilforsterker MD 3000, 1ohm, 1x3000W

MD3000.1 forsterkeren fra Taramps ble nøye utviklet med å bruke den nyeste teknologien for stabil og høy ytelse i hele frekvensområde. Dette er altså en mono fullrange forsterker.
Den har en maksimal effekt på 3000 Watt i 1 Ohm. Forsterkeren har innebygd delefilter og en bassboost.

Spesifikasjoner

• Operation class: Class D
• Number of Channels: 01
• Maximum power: @ 12.6 VDC - 1 OHM: 3000W RMS
                                  @ 12.6 VDC - 2 OHMS: 1920W RMS
• Input Sensitivity: 220 mV
• Signal to Noise Ratio: >90dB
• Frequency Response: 10Hz ~ 18KHz (-3dB)
• Crossover high pass (HPF): 10Hz ~ 90Hz (-12dB/8ª) Variable
• Crossover low pass (LPF): 90Hz ~ 18KHz (-12dB/8ª) Variable
• Bass boost: 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)
• Efficiency: 79%
• Input Impedance: 15K Ohms
• Output Impedance: 1 OHM
• Protection system: Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection
• Min. Supply Voltage: 9VDC
• Maximum Power Supply Voltage: 16VDC
• Consumption at rest: 1.0 A
• Maximum music consumption: 150 A
• Maximum consumption in sinusoidal signal: 300 A
• Dimensions (WxHxD): 228 x 70 x 218 mm
• Weight: 2,5 kg
